FROM €70,000

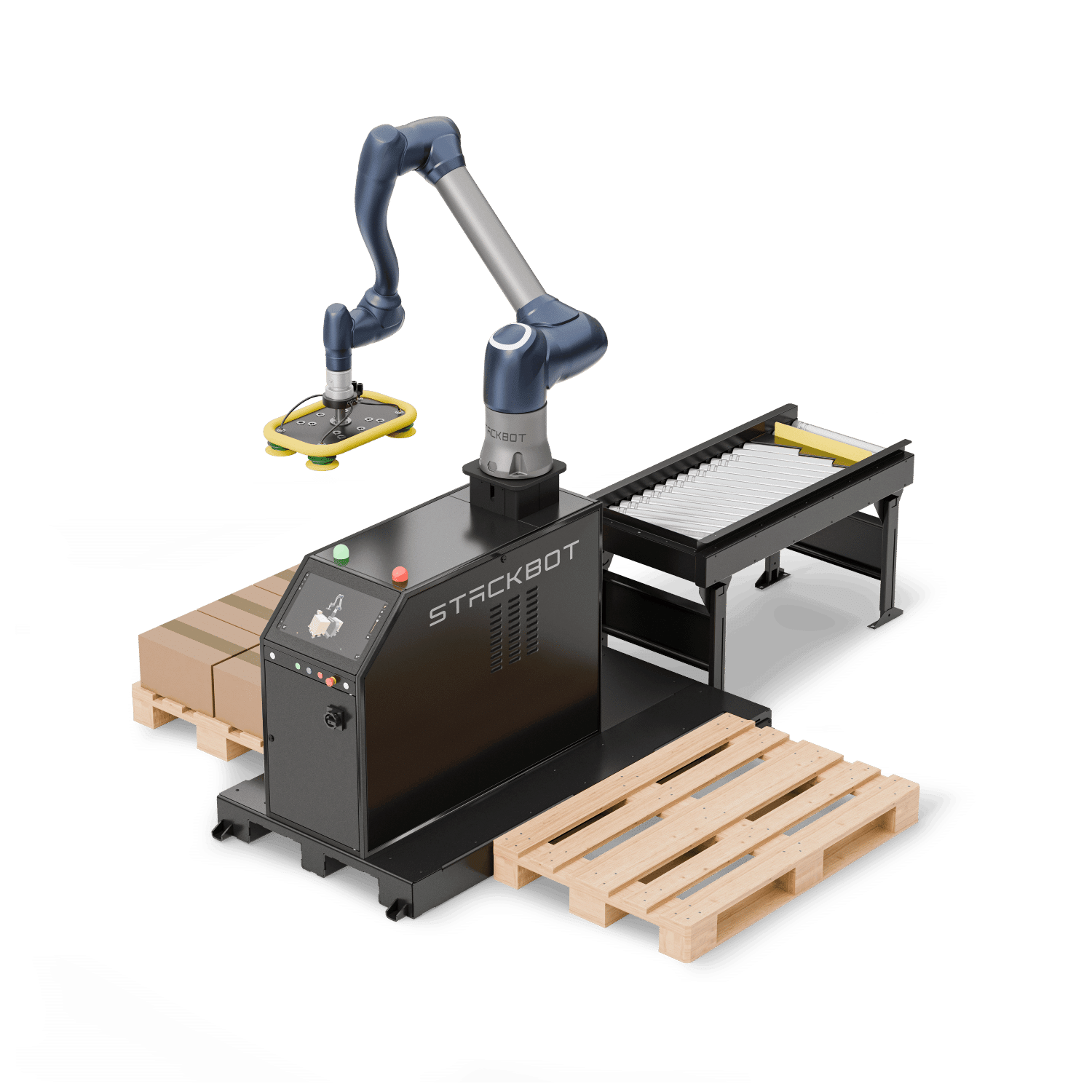

Stackbot 20 Core
The simplest way to start robotic palletizing with this compact plug-and-play palletizer.
SB20 Core installs in a single day, fits into your existing floor space, and is operated by your team through a simple touchscreen interface. No programming, no complex integration, no line redesign.
The SB20 Core configuration handles payloads up to 20 kg and runs shift after shift at consistent output. Every unit ships ready to work, with a StackFeeder and StackGrip Flex included as standard and remains a practical foundation you can extend over time with various StackGrip end effectors, StackLayer station and other modules as your line evolves.
Whether you’re handling boxes, crates, containers, bags or shrink-wrapped products, StackBot 20 delivers reliable palletizing with minimal disruption to your existing line.
Suitable For
Boxes
Crates
Shrink Wrapped
Containers
Boxes
Crates
Shrink Wrapped
Containers
PRODUCTS
Modules & Options
Every STACKBOT ships with one StackFeeder and one StackGrip Flex as standard. Add modules to match the way your line actually works.
StackGrip Felx
Modular vacuum gripper that adapts to any box size, weight, and cardboard quality without tool changes. Reconfigure suction cups in minutes to handle small, medium or large boxes.
- Carbon-fibre body with modular layout
- 4 configurations for any box footprint
- Up to 90 kg lifting capacity
- Handles corrugated cardboard boxes and plastics
- Adapts to good, medium and poor box quality
- Highly visible safety polyurethane protector
- ISO 9409-1-50-4-M6 flange
StackGrip Multi
Lightweight area gripper for single-pick and multi-pick applications. High vacuum flow enables reliable handling even when part of the gripping surface remain uncovered.
- Single-pick and multi-pick capable
- High vacuum flow for improved gripping forces
- Ultra-light carbon-fibre body
- Anti-twist vacuum coupling
- Handles corrugate, plastics, paper and others
- Optimised for high-speed perfromance
StackGrip Versa
Foam-surface vacuum gripper engineered for shrink-wrapped bundles, irregular packs, and uneven top surfaces for reliable single-pick and multi-pick operation.
- Single-pick and multi-pick capable
- Foam gripping surface
- Ideal for heat-shrink film and wrapped trays
- High vacuum flow for improved gripping forces
- Ultra-light carbon-fibre body
- Anti-twist vacuum coupling
- Handles corrugate, plastics, paper and others
- Optimised for high-speed perfromance
StackFeeder
Intelligent, electronically controlled infeed conveyor with skewed rollers for consistent box positioning for fast, reliable picks.
- Adjustable working height
- Adjustable feeding speed up to 50m/min
- Sensors for multi-line picking
- FeedGate for upstreaming box flow control
- Designed to feed all common box sizes
StackLayer
Flexible slipsheet and interlayer handling station for pallet patterns required interlayers for pallet stability.
- Holds interlayers in a repeatable pick position
- For rigid and soft interlayers
- Adjustable tray for up to 25 cm interlayer stacks
- Angled or horizontal tray position
- Various install positions for maximum flexibility
- Height-adjustable, heavy-duty steel construction
Find the right fit with
our product finder
Compare Models
COMPARISON TABLE
Specification | SB20 CORE  | SB20 PRO  | SB30 CORE  | SB30 PRO  |
|---|---|---|---|---|
Payload | 20 kg | 20 kg | 30 kg | 30 kg |
Speed up to | 6 CPM (12 CPM with external safety) | 12 CPM | 6CPM (12 CPM with external safety) | 12 CPM |
Max pallet height | 2200 mm | 2200 mm | 2750 mm | 2750 mm |
Pallet sizes | 1200x800/1000 | 1200x800/1000 | 1200×800/1000/1200 | 1200×800/1000/1200 |
Footprint | 2900 x 1100 mm | 3060 x 3160 mm | 2900 x 1100 mm | 3060 x 3160 mm |
Robot | Doosan H2017 | Doosan H2017 | Doosan P3020 | Doosan P3020 |
StackFeeder with FeedGate | • | • | • | • |
StackGrip Flex | • | • | • | • |
StackGuard Perimeter safety | - | • | - | • |
Suitable for |  | | | |
Get in Touch
Want to see SB 20 CORE in your own production environment?
- Trial duration: 1 or 2 weeks
- Robot delivered: STACKBOT 20 or 30
- Setup time on site: Under 1 hour from truck arrival
- Operator training: Half a day, included
- Engineering support: On site for setup, remote during trial
- Available across: Bulgaria and partner regions
